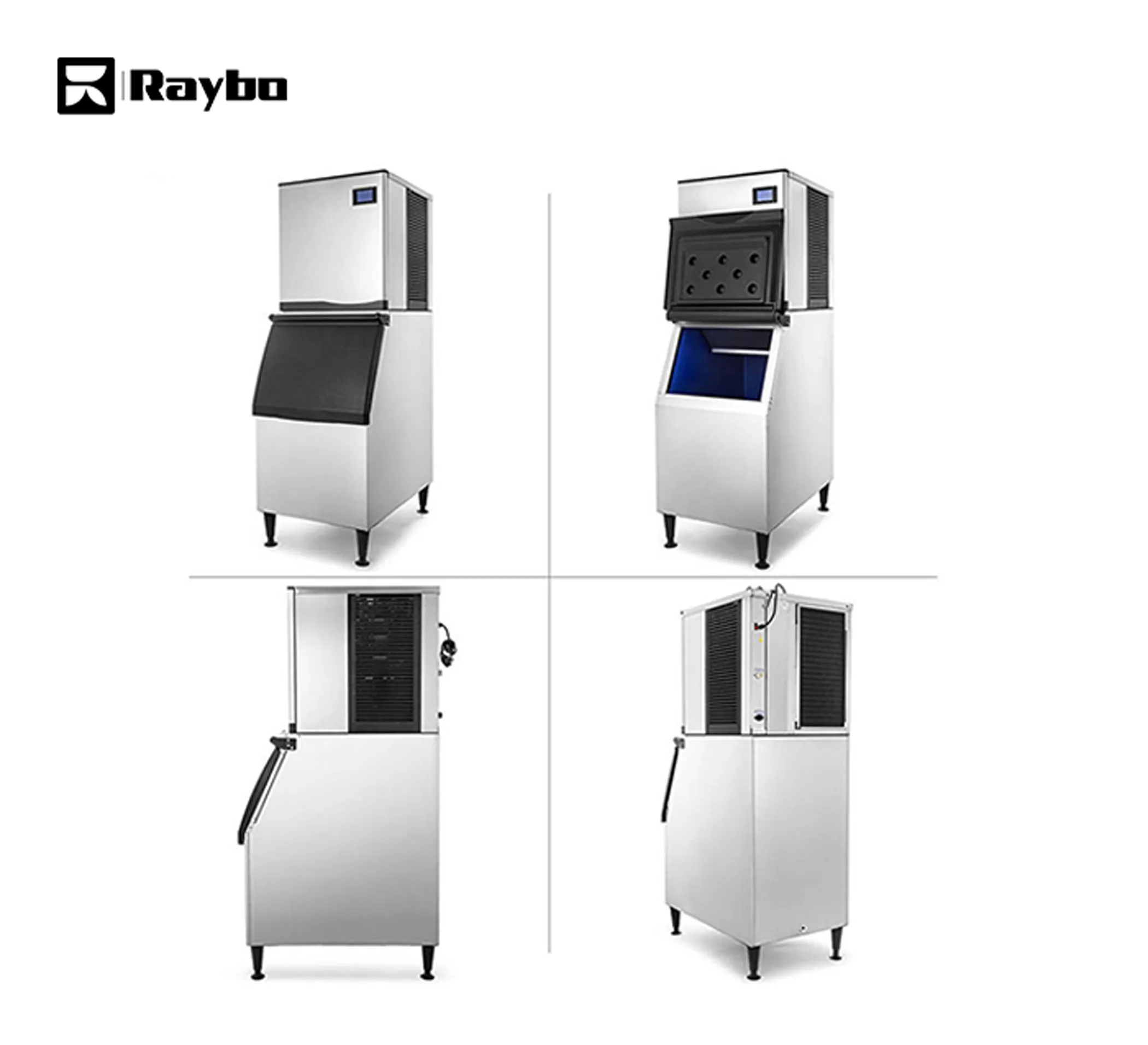

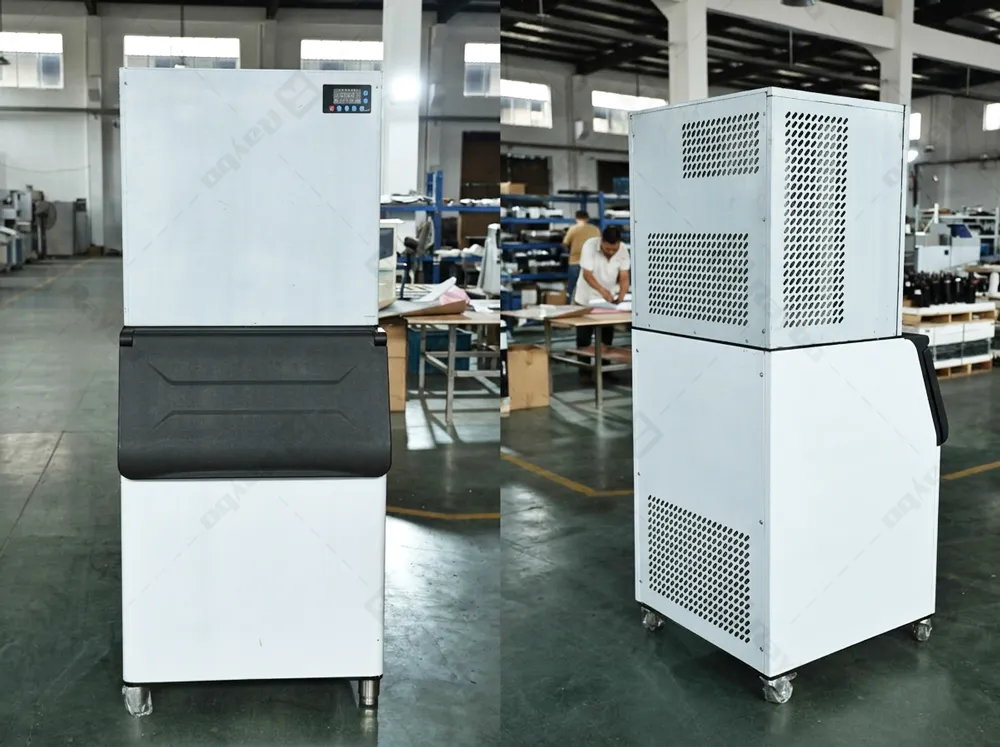

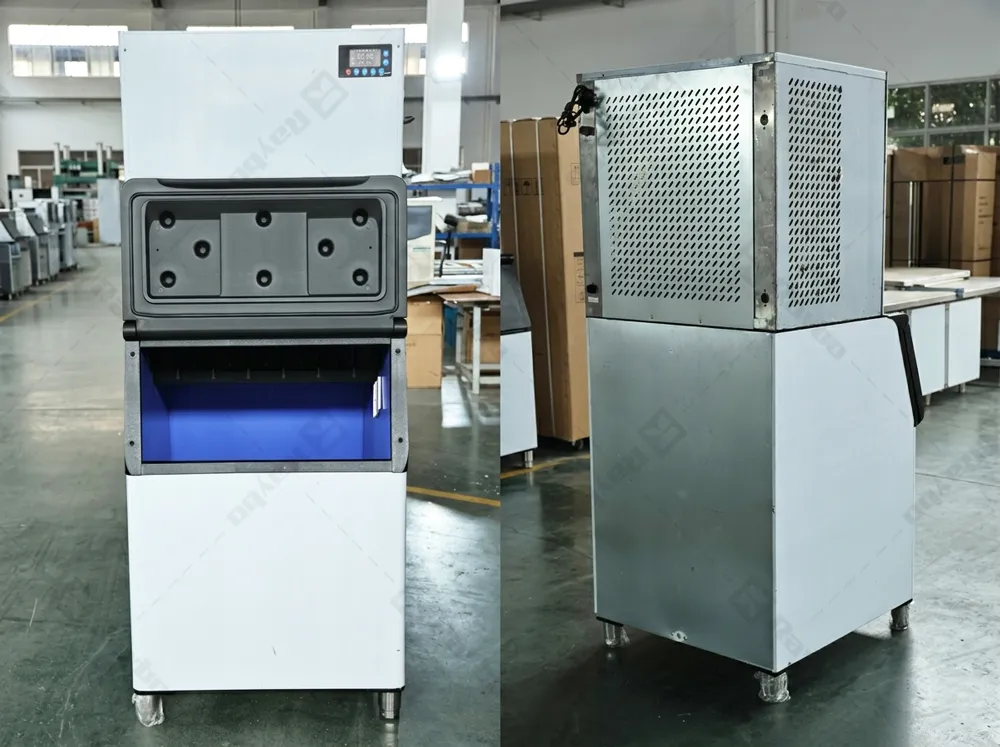

500kg Ice Cube Machine
500kg ice cube machine makes 500kg of high-quality ice per 24 hour with high efficiency and speed. Raybo machines use a famous brand compressor and other high-quality parts. The overall ice production efficiency and ice quality improve greatly. It normally produces ice quickly in about 8 to 20 minutes. Raybo customizes ice machines for each customer’s situation. We meet the needs of different countries and different applications.
Specifications of 500KG Ice Cube Making Machine

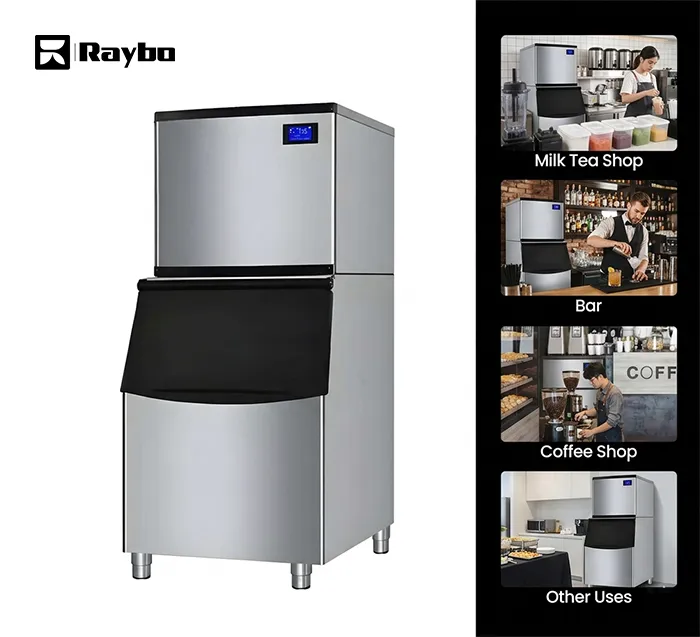

500kg cube ice machine features moderate production capacity, strong versatility, small footprint and low cost. It fits mainstream commercial scenes such as milk tea shops, restaurants, bars and canteens perfectly. It ensures stable ice supply and avoids shortages. It helps control operating costs. So, it is a practical choice for most businesses. These are the specifications of the Raybo 500kg model.
Cube Ice Sizes: Standard size is 22*22*22mm. Available in various sizes and thicknesses.
| Item No. | Capacity | Compressor Rated Power | Ice Making Machine Size (L*W*H) | Ice Storage Capacity | Refrigerant | Single Batch Ice Output |
|---|---|---|---|---|---|---|
| RB-500 | 500 KG/24H | 220V/50HZ/1150W | 760*840*1810mm | 250KG | R410 | 270 PCS |

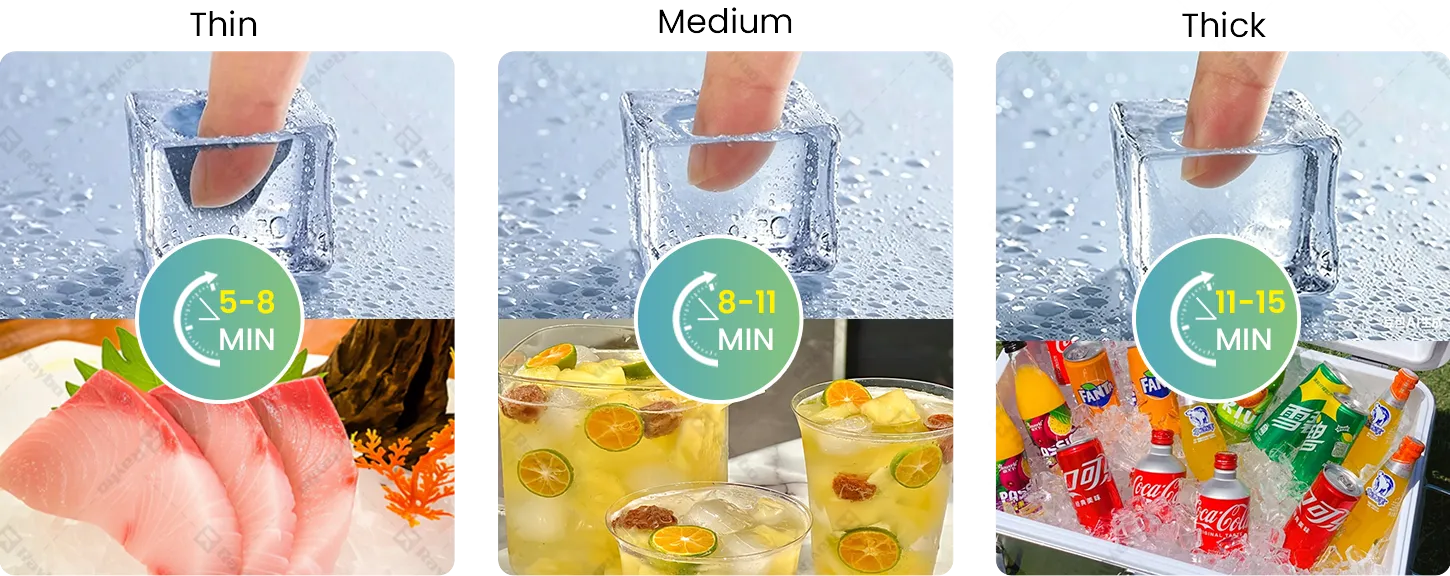

Adjust The Thickness of Cube Ice to Meet Your Needs
The Raybo ice machine allows you to freely adjust the ice-making time according to your actual needs, including thin ice, medium ice and thick ice. Different ice-making durations will result in different ice shapes, making it easy to meet diverse ice requirements for daily drinks, banquet presentations, commercial cooling and various other occasions, delivering a more considerate and practical user experience.
Reasons to Choose Raybo Ice Cube Machine 500KG
Industry-Wide Profit Generation with Raybo 500KG Cube Ice Machines
Customization Support of 500KG Ice Making Machine
Raybo meets different customer needs. We offer customization services in the following areas. You can choose configurations based on your local environment and your business preferences. This makes the ice machine truly suitable for your specific situation. We handle high-temperature conditions in tropical areas. We meet environmental requirements in the European market. We also follow unified equipment standards for chain brands. We provide the best matching solution for you. Customization is not just an option. It is our way of making the machine understand your business better.
- Voltage: Matches power standards of different countries and regions (such as 110V, 220V, 380V, etc.).

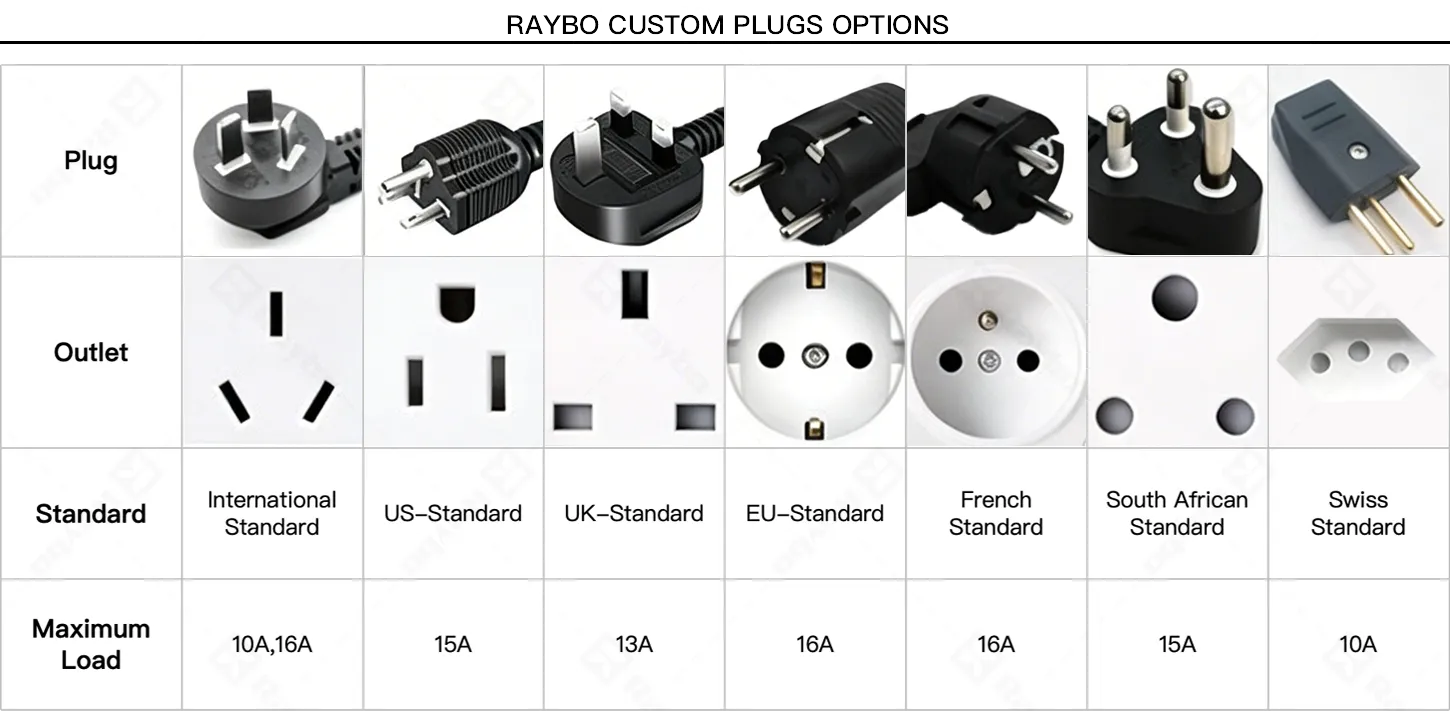

- Plug Type: Supports many plug types like US standard, EU standard, UK standard, AU standard, South Africa standard, and more.

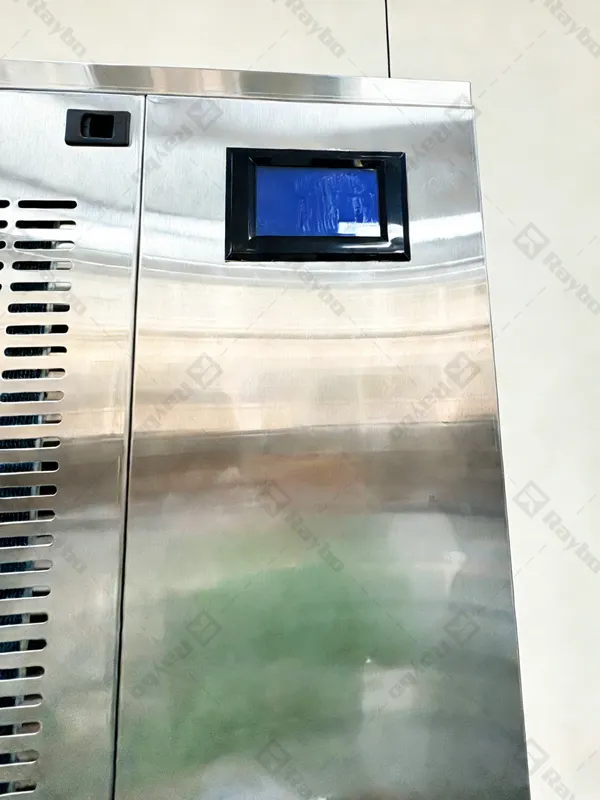

- Panel Language: Provides multi-language interfaces like English, Spanish, French, Arabic, and more.
- Refrigerant Type: Offers choices like R22, R404a, R290, R410, balancing environmental friendliness and performance.

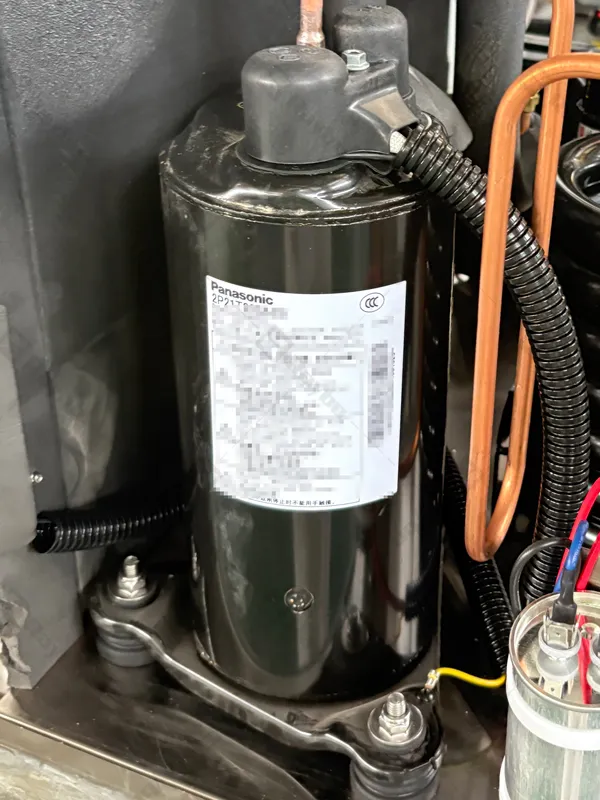

- Compressor Brand: Uses famous brands, like Wanbao, Meizhi, Bitzer, Refcomp.
- Ice Tray Mold Size: Makes different sizes of square ice according to ice type needs.

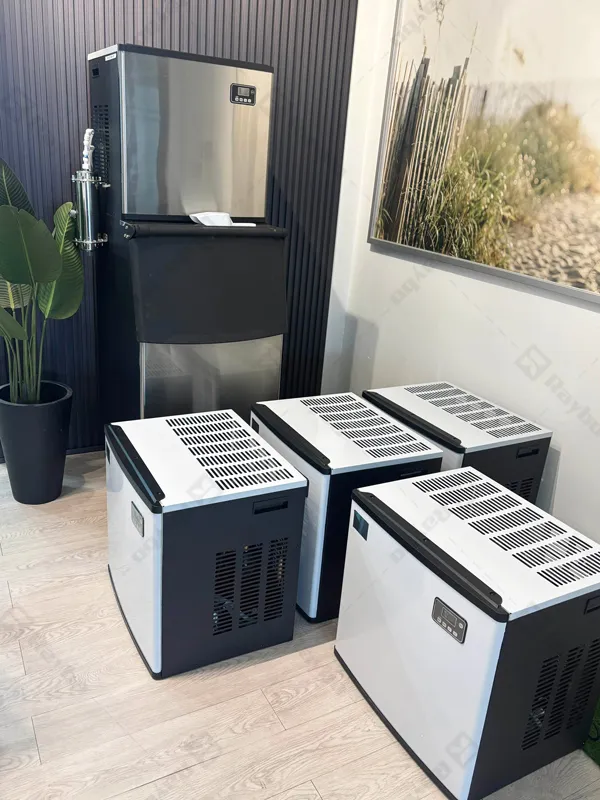

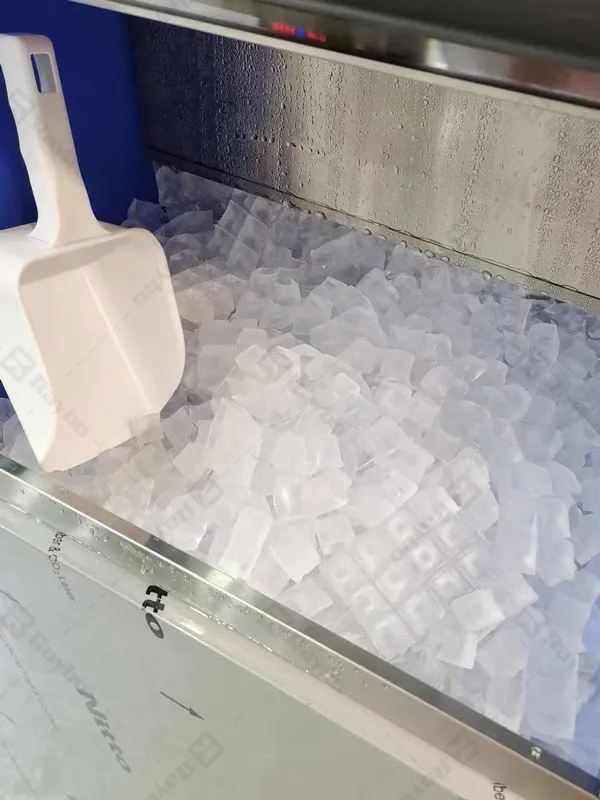

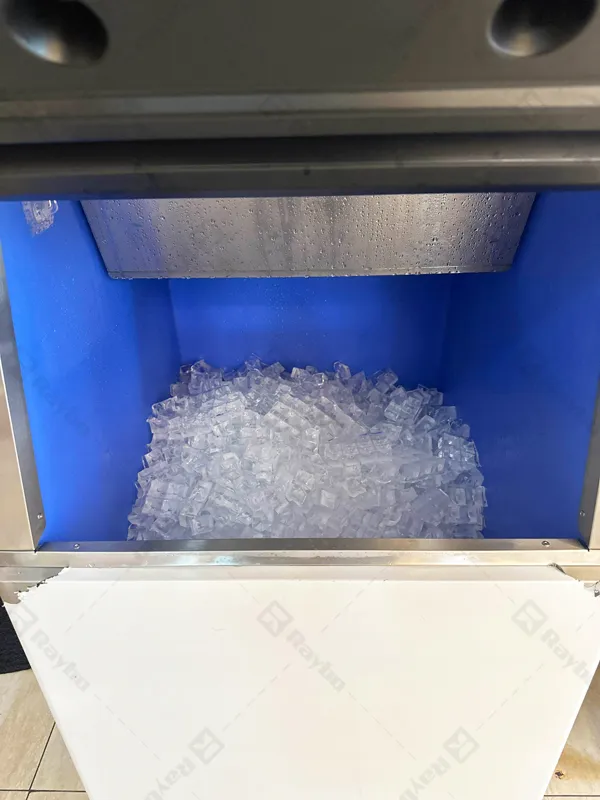

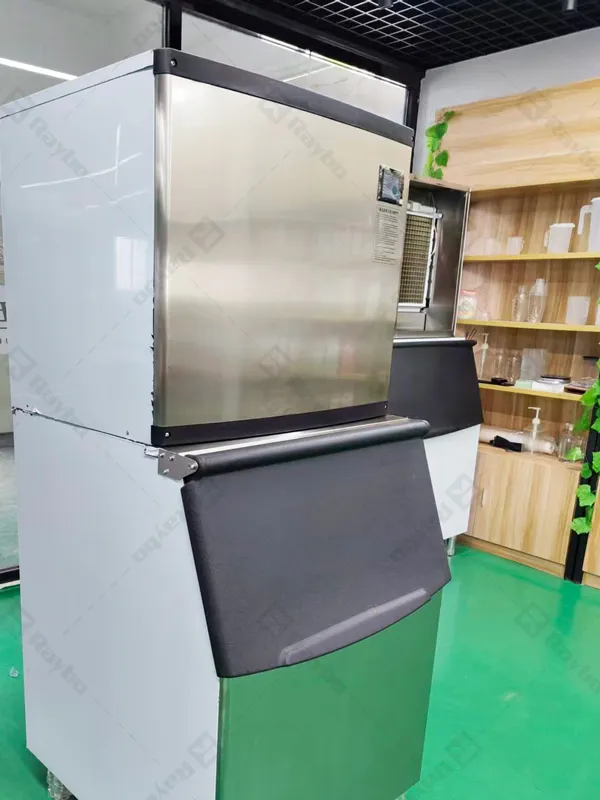

Cases of 500KG Ice Cube Making Machine
Raybo 500kg industrial square ice machine now serves customers in over 50 countries and regions worldwide. What makes us most proud is not our sales volume. It is our high 40% repurchase rate from existing customers. These customers tell us they tried several other brands. But our machine still keeps a stable daily output even at 40°C high temperatures. If you are also looking for a reliable and energy-saving ice machine, one that works well in real conditions and not just “looks good on paper”, please leave a message below.
Working Process of 500KG Ice Cube Making Machine
Installation Guide of 500KG Ice Cube Maker Machine
Location: Flat ground, 30-50cm ventilation space, away from heat.
Water: Install water filter; ensure drain pipe has a downward slope.
Power: Use independent 16A switch; verify local voltage compatibility.
Operating Steps of 500KG Ice Cube Machine
Preheat & Fill: Preheat compressor. Water fills the tank and stops automatically.
Cycling & Freezing: Water pumps over the evaporator; compressor cools it to form ice layers.
Smart Monitoring: Thickness sensor triggers the harvest cycle once ice reaches preset size.
Hot-Gas Harvest: Hot gas warms the plate; ice sheet drops into the bin and breaks into cubes.
Auto-Cycle: Cycle restarts automatically. Machine stops when the bin is full.
Choose Raybo — Choose Quality and Value
Raybo has its own production factory. No middleman adds extra markup. Customers deal directly with the manufacturer. This lowers costs and speeds up after-sales service.

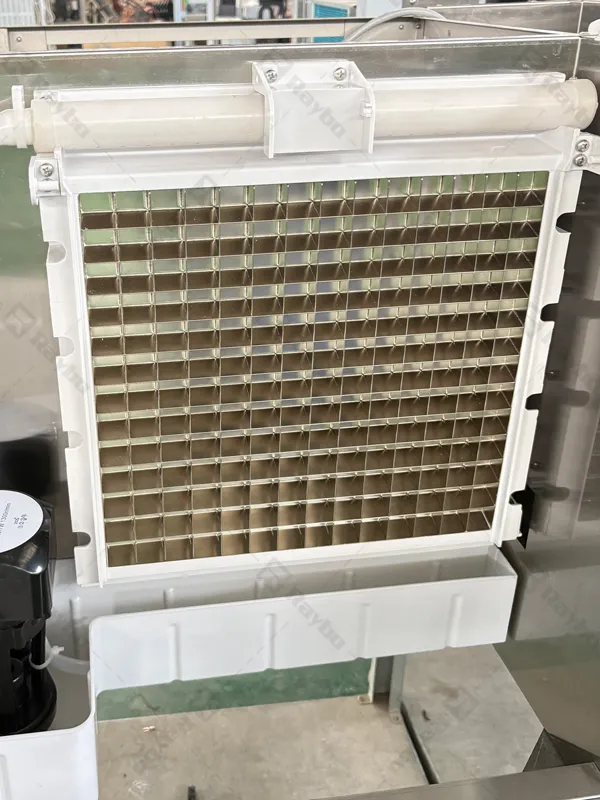

Raybo focuses on ice machines for many years. We have deep technical knowledge. Every part undergoes repeated testing. This includes the ice tray and the control system.
Each machine passes many tests before leaving the factory. These tests include seal and electrical safety checks. A full-load operation test is also performed. This ensures stable and reliable delivery to customers.
Raybo keeps finished stock of common models. Our production line schedules work efficiently. Regular orders ship in a short time. We also respond quickly to urgent orders. Contact us through WhatsApp.
Raybo provides remote technical guidance and video fault diagnosis. Fast spare parts supply is also available. Long-term customers receive deeper technical training. We give them extra support as well.
Raybo improves products using global customer feedback. We upgrade control panel logic regularly. We increase heat dissipation for hot environments. We also simplify cleaning to make the machine better over time.
