Flake Ice Machine For Sale
Flake ice machine for sale deliver high-quality ice flakes and snowflake in 3-5 minutes. The lineup offers daily capacities from 80kg to 2000kg, making it suitable for small businesses and light industrial use. Large-capacity storage bins ensure a steady ice supply. These machines work well for seafood preservation, food processing, and chemical cooling.

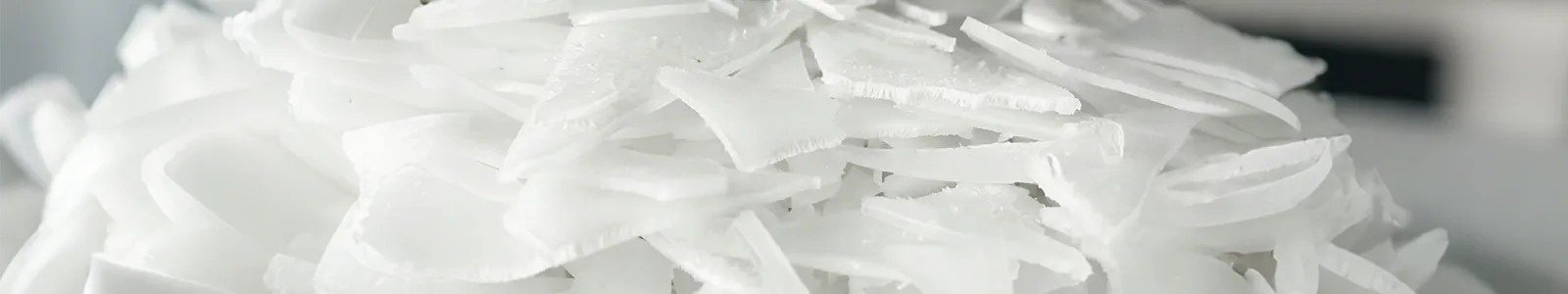

Flake Ice Varieties Produced by Flake Ice Machine
Irregular small particles;
Ice production in 3 minutes.
Smaller irregular particles;
Ice production in 3 minutes.
About 1.5 mm thickness;
Ice production in 5 minutes.
Different Models of Machines for You

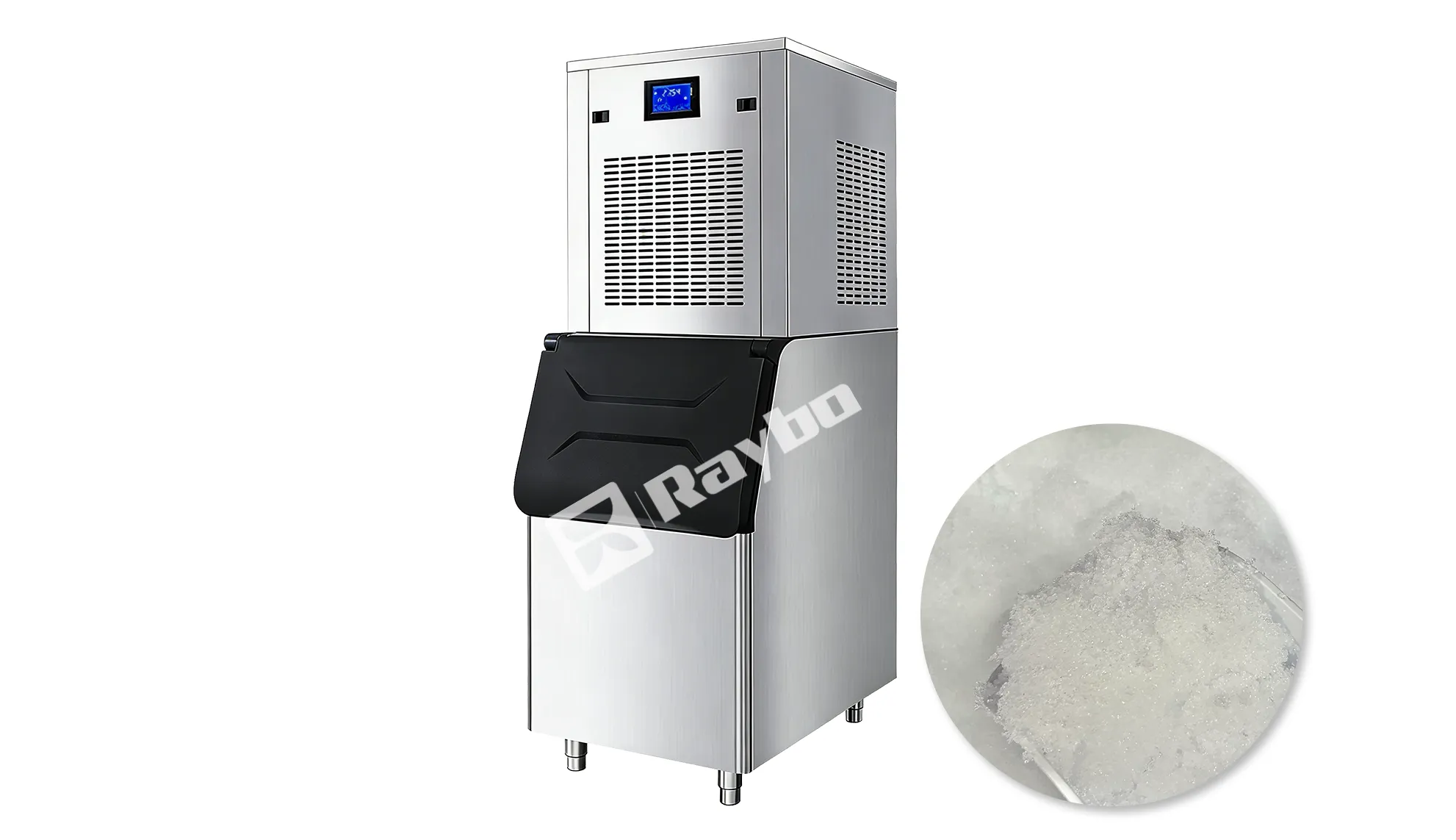

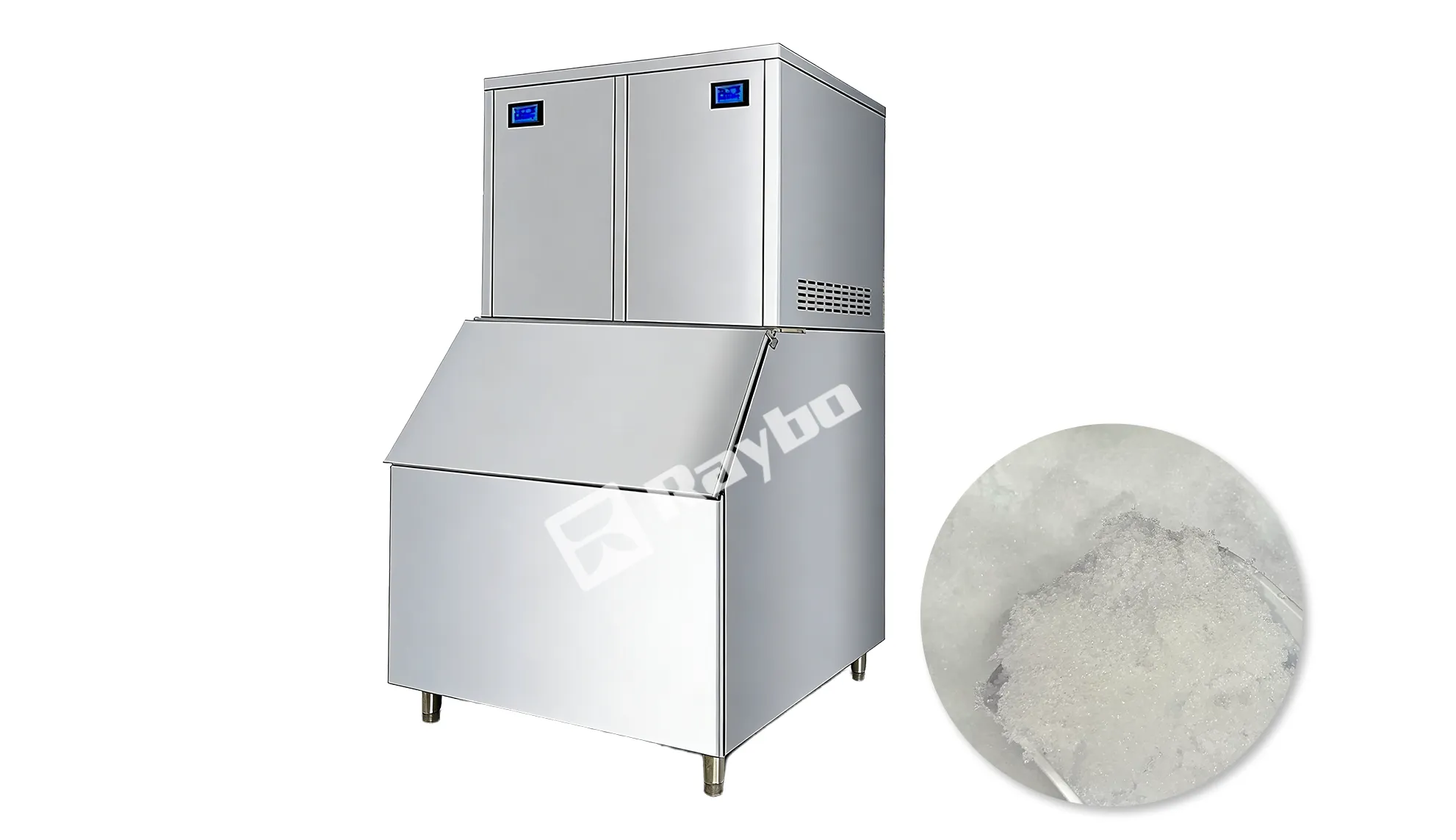

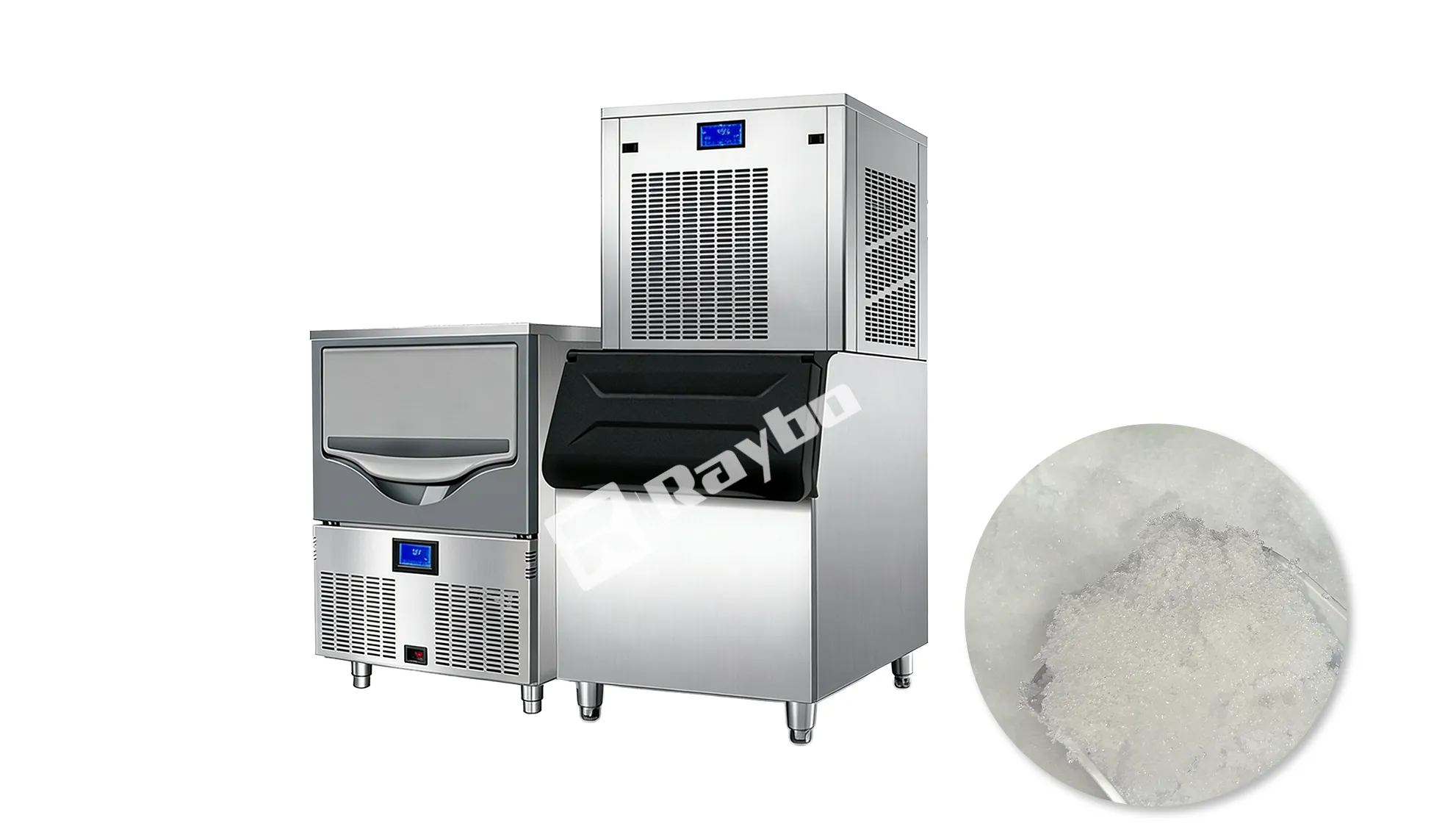

Model: RBX-80/100/150/180/200/300;
Capacity: 80-300kg/24H;
Ice Storage Capacity: 25-150kg;
Model: RBX-400/500/600;
Capacity: 400-600kg/24H;
Ice Storage Capacity: 300kg;
Model: RBX-1000;
Capacity: 1000kg/24H;
Ice Storage Capacity: 600kg;

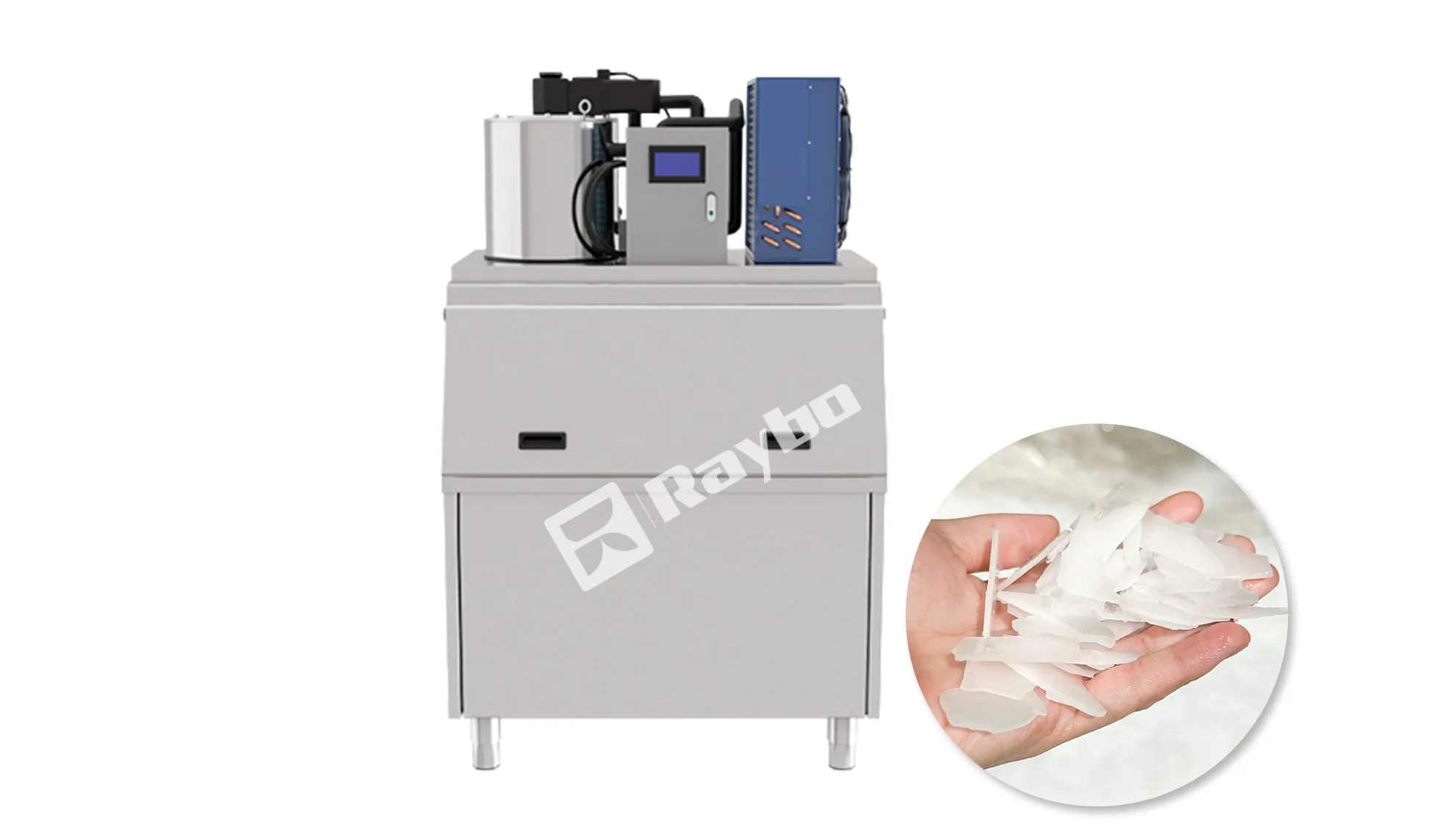

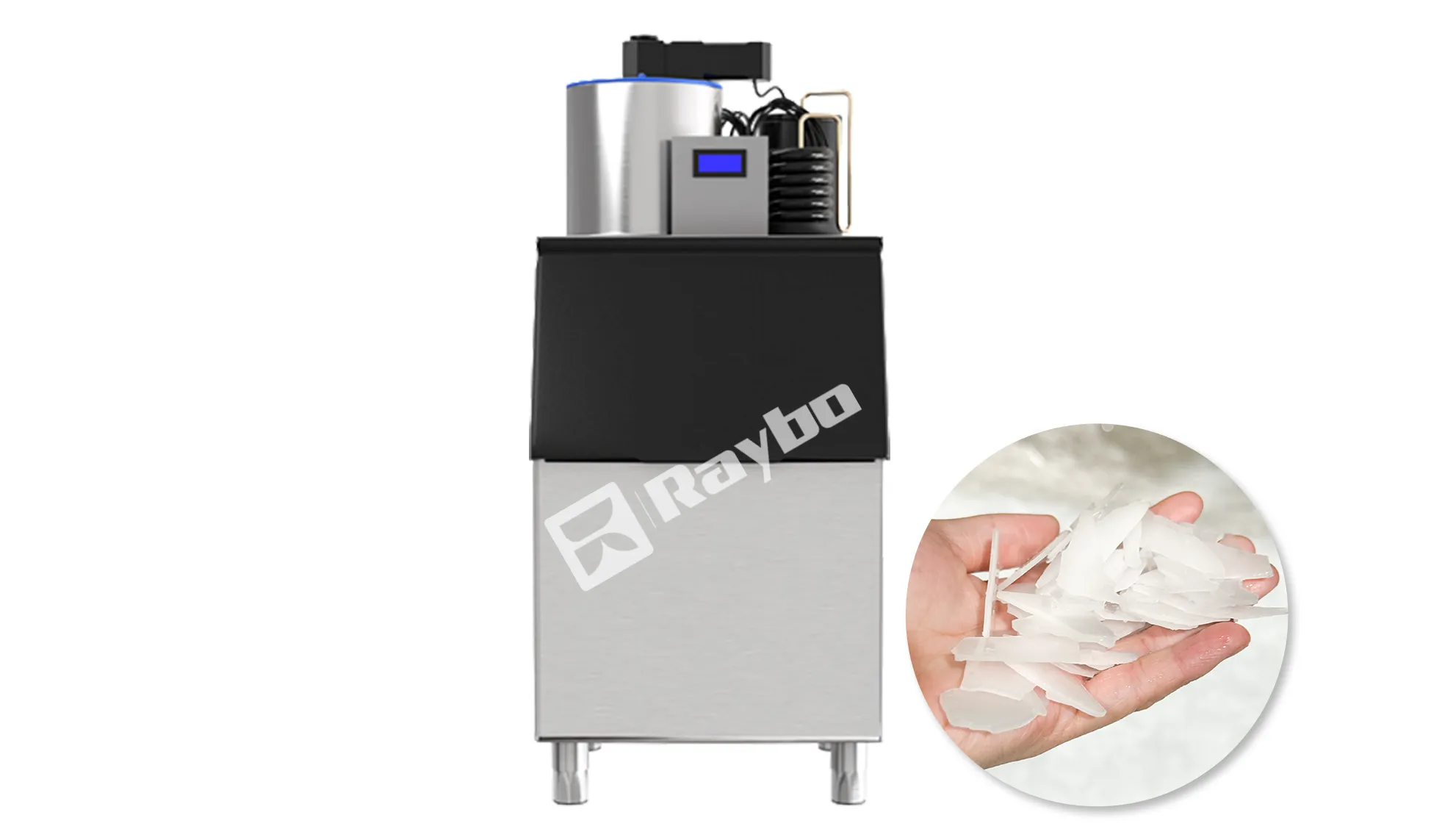

Model: RBF-200/300/400;
Capacity: 200-400KG/24H;
Ice Storage Capacity: 150-180KG.

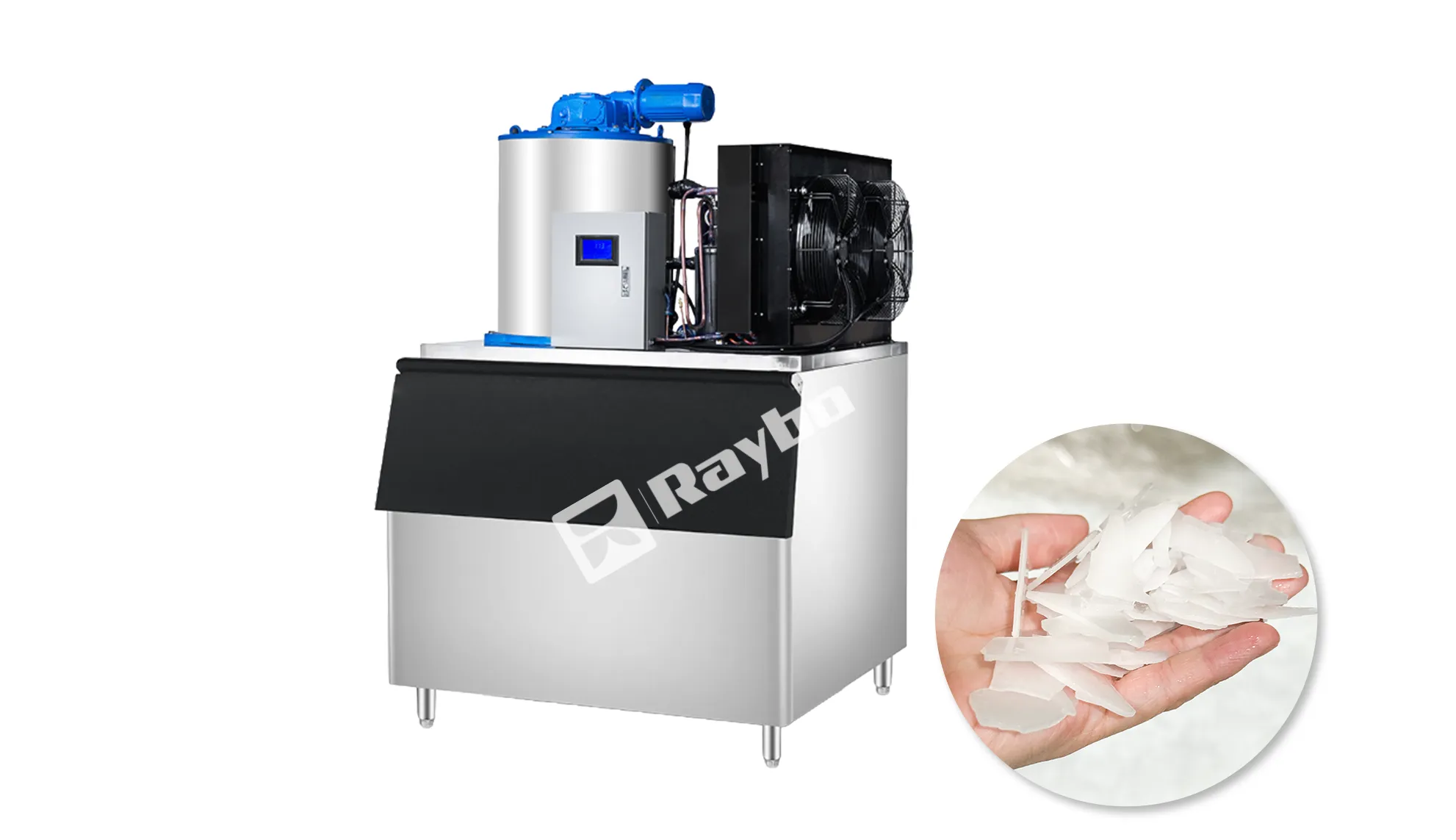

Model: RBF-500/1000/1200;
Capacity: 500-1200KG/24H;
Ice Storage Capacity: 480KG.
Model: RBF-1500/2000;
Capacity: 1500-2000KG/24H;
Ice Storage Capacity: 700-1100KG.
Specifications Of Raybo Flake Ice Machine for Sale
Raybo offers high-performance commercial flake ice maker for sale. Raybo flake ice line covers daily outputs from 80kg to 2,000 kg. These units serve a wide range of needs. Whether you run a small fresh food supermarket or manage a large food processing plant, our equipment delivers stable, dry, and low-temperature ice flakes. The series features fast ice-making technology and an energy-saving design. This combination ensures high output and lowers operating costs.
Type 1. Specification of Raybo Snowflake Ice Machine for Sale
| Item No. | Capacity | Compressor Rated Power | Ice Making Machine Size (LWH) | Ice Storage Capacity | Refrigerant | Weight |
|---|---|---|---|---|---|---|
| RBX-80 | 80KG/24H | 480W/220V/50HZ | 550*590*870mm | 25KG | R404A | 60KG |
| RBX-100 | 100KG/24H | 560W/220V/50HZ | 550*590*870mm | 25KG | R404A | 65KG |
| RBX-150 | 150KG/24H | 680W/220V/50HZ | 660*670*1010mm | 45KG | R404A | 75KG |
| RBX-180 | 180KG/24H | 750W/220V/50HZ | 660*670*1010mm | 45KG | R404A | 80KG |
| RBX-200 | 200KG/24H | 1100W/220V/50HZ | 560*840*1790mm | 150KG | R22 | 110KG |
| RBX-300 | 300KG/24H | 1300W/220V/50HZ | 560*840*1790mm | 150KG | R22 | 120KG |
| RBX-400 | 400KG/24H | 1420W/220V/50HZ | 760*840*1740mm | 300KG | R22 | 150KG |
| RBX-500 | 500KG/24H | 1560W/220V/50HZ | 760*840*1940mm | 300KG | R22 | 180KG |
| RBX-600 | 600KG/25H | 1620W/220V/50HZ | 760*840*1940mm | 300KG | R22 | 190Kg |
| RBX-1000 | 1000KG/26H | 3900W/220V/50HZ | 1230*960*1920mm | 600KG | R22 | 300KG |

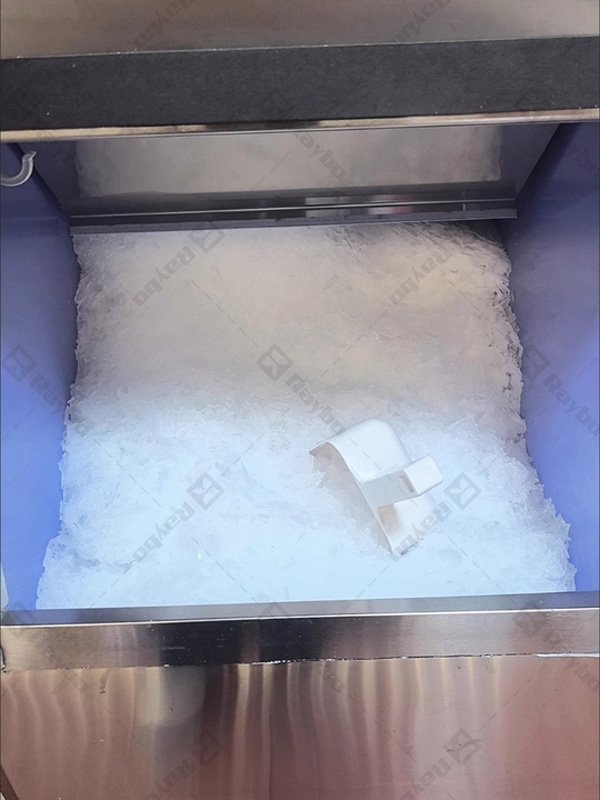

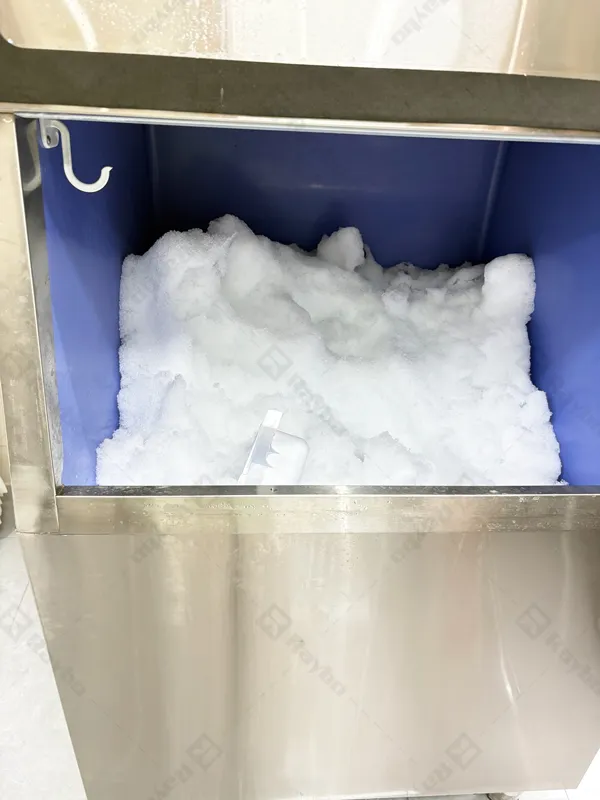

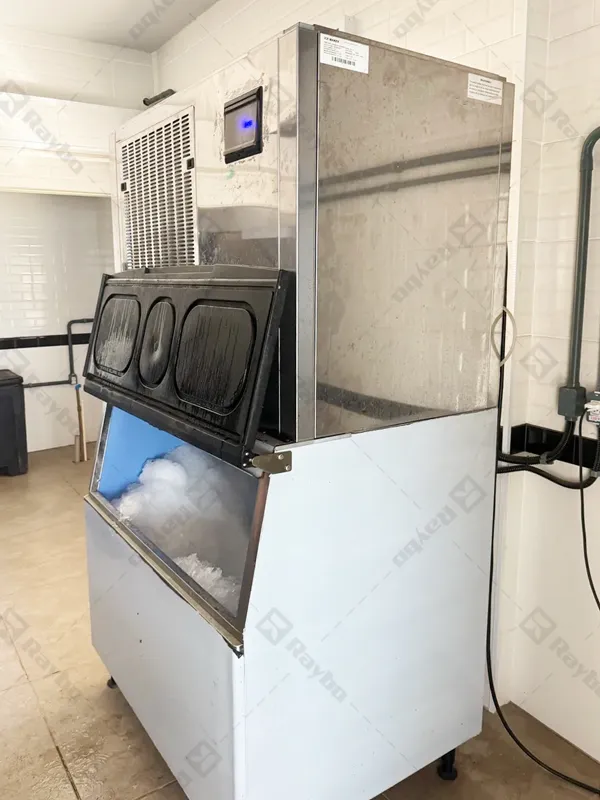

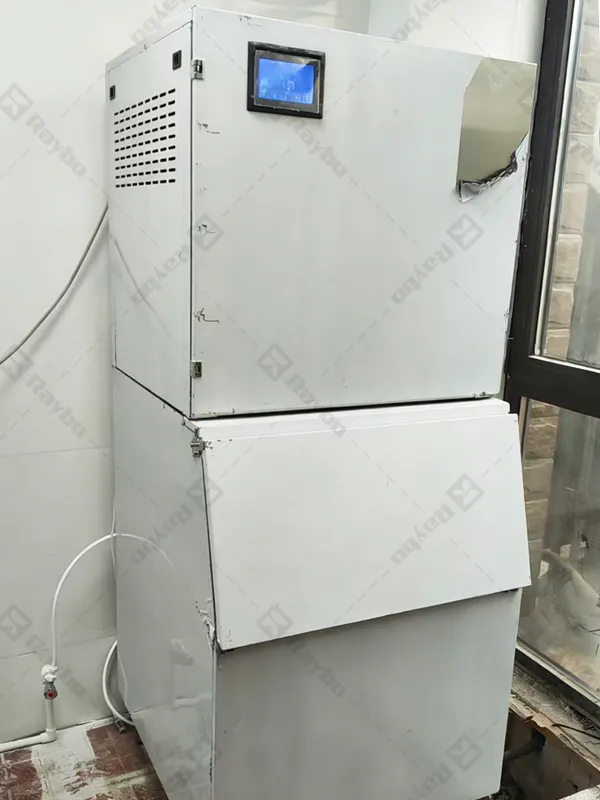

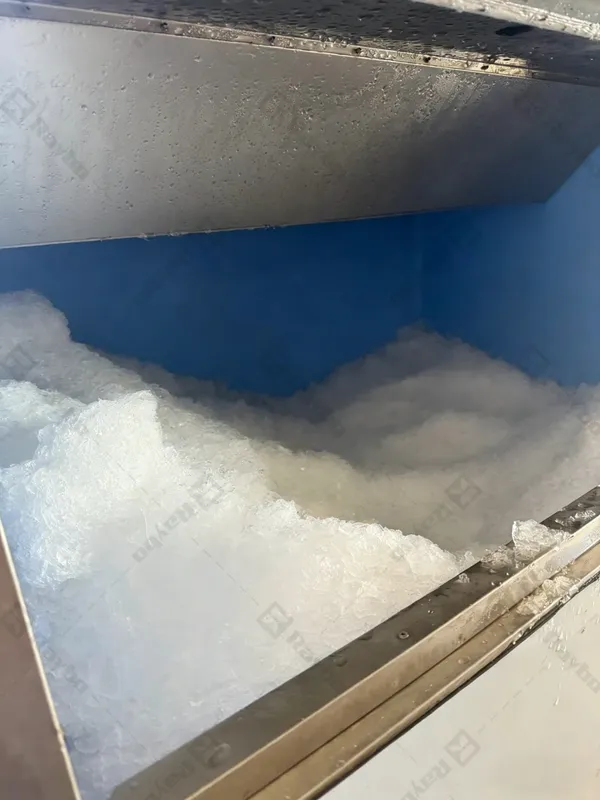

Cases of Raybo Snow Ice Flake Maker Machine
Raybo snow flake ice machine for fish has been widely exported to Europe, South America, North America, and Africa. It receives consistent positive feedback from customers across these regions. Customers praise its reliable performance, competitive ice flaker price, and energy efficiency. The machine also keeps fish fresh under various climatic and operational conditions.
Type 2. Specification of Raybo Ice Flake Machine for Sale
| Item No. | Capacity | Compressor Rated Power | Flaker Machine Size (L*W*H) | Ice Storage Capacity | Refrigerant | Water Inlet Method |
|---|---|---|---|---|---|---|
| RBF-200 | 200KG/24H | 1350W/220V/50HZ | 760*870*1710mm | 150KG | R22 | Tap-Water |
| RBF-300 | 300KG/24H | 1350W/220V/50HZ | 760*920*1750mm | 180KG | R22 | Tap-Water |
| RBF-400 | 400KG/24H | 1350W/220V/50HZ | 760*920*1750mm | 180KG | R22 | Tap-Water |
| RBF-500 | 500KG/24H | 2610W/220V/50HZ | 1240*930*2000mm | 480KG | R404A | Tap-Water |
| RBF-1000 | 1000KG/24H | 4500W/220V/50HZ | 1240*930*2110mm | 480KG | R404A | Tap-Water |
| RBF-1200 | 1200KG/24H | 5000W/220V/50HZ | 1240*930*2110mm | 480KG | R404A | Tap-Water |
| RBF-1500 | 1500KG/24H | 7000W/380V/50HZ | 1250*1240*2070mm | 700KG | R22 | Tap-Water |
| RBF-2000 | 2000KG/24H | 12000W/380V/50HZ | 1320*1240*2160mm | 1100KG | R22 | Tap-Water |

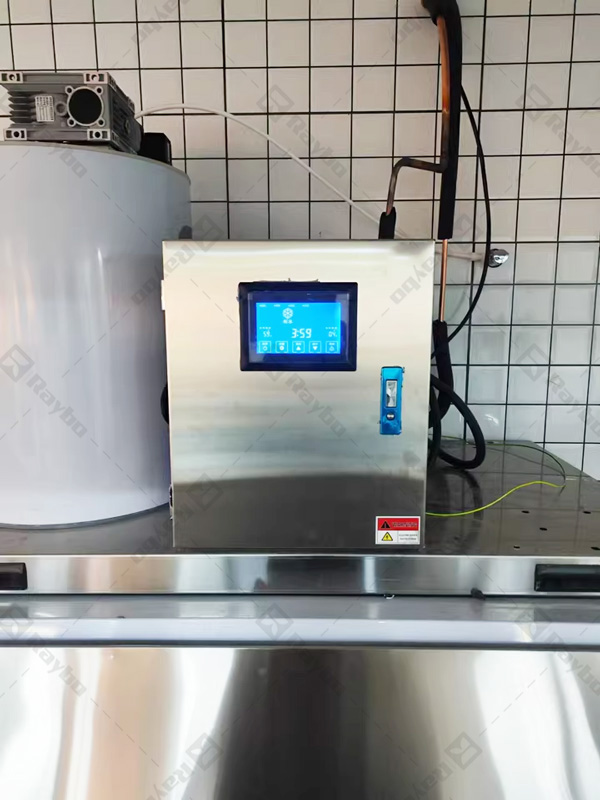

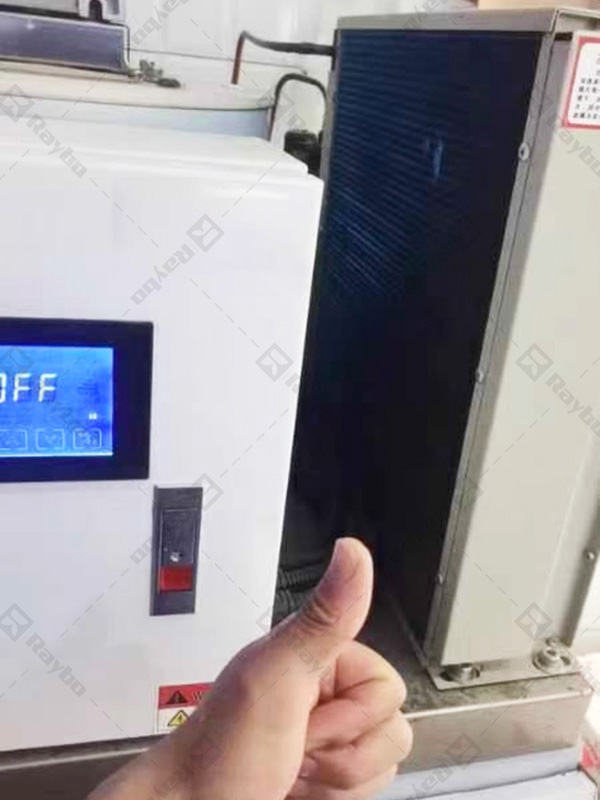

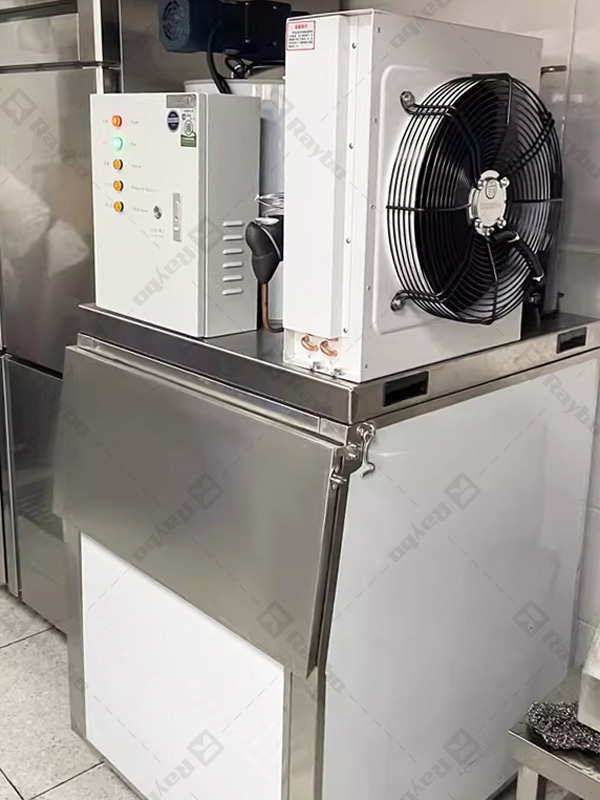

Cases of Raybo Ice Flake Maker Machine
Raybo ice maker flake ice is shipped to over 50 countries worldwide. We offer factory-direct flake ice machine price and complete flake ice production solutions for cold chain transport needs. Our services cover everything from system design to after-sales support. We provide strong customization options and high product quality. These strengths have earned us full recognition from our customers. Besides, we also provide machines to make other shapes, like cube ice making machine.
Essential Components of Flake Ice Maker Machine
The brand compressor is eco-friendly and fluorine-free. It offers superior cooling capacity and energy efficiency. It keeps the evaporation temperature stable at about -26°C. This design improves ice-making efficiency by about 15%.

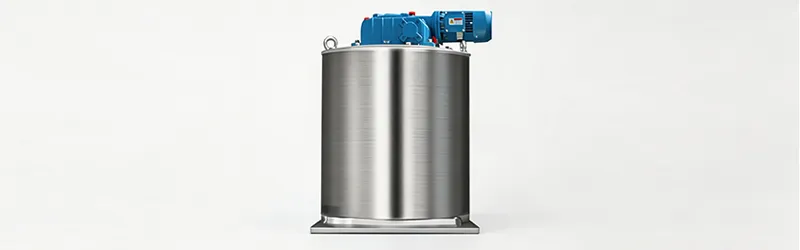

The stainless steel material meets food-grade hygiene standards. It ensures clean and safe ice flakes. Its good heat conduction boosts ice-making efficiency and produces high-quality ice flakes.

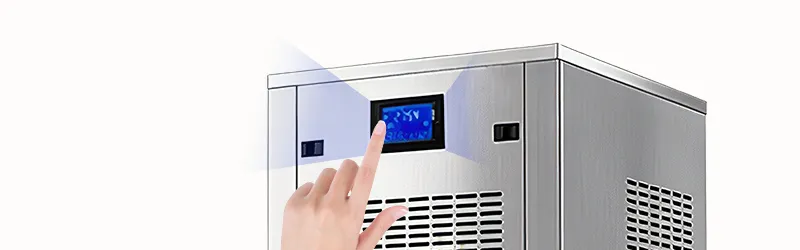

The control board of flake ice machine with bin uses PLC programming and imported chips for simple operation. It starts or stops with one touch. Users can set running times freely and improve energy savings. The entire process can be fully automated, thereby reducing manual labor.

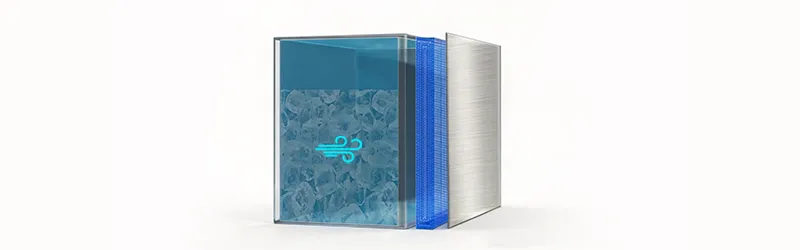

The stainless steel bin has a high-performance polyurethane foam insulation layer. This stops ice from melting or sticking together for a long time. The strong and sterile, and hygienic liner design offers a reliable cold storage solution for food processing.
Fully Automatic Control Settings of Flake Making Machine
The system of best flake ice machine for sale uses a microcomputer and a PLC programmable controller. It coordinates the evaporator, water supply, and mechanical operation automatically. Users can set on and off times flexibly to manage energy use.
The system monitors key parameters in real time. These include power failure, water shortage, full ice, compressor current, high and low pressure, and overheating. The system stops automatically and shows a blinking fault light for any problem.
The PLC receives a normal signal automatically after a fault is fixed. It restarts the flake maker without any manual help. This allows true automatic and continuous ice production with very low labor costs.
Multiple protection mechanisms in the ice flaker for sale prevent damage to key parts like the compressor and gearbox. The system ensures stable operation under different site conditions. This extends the flake style ice machine’s overall service life.
All Industries’ Cooling Solutions – Flake Ice
Flake ice produced by ice machine flake ice has a dry characteristic with a temperature below -7°C. It enables fast heat exchange without adding moisture. Its applications cover the following industries:

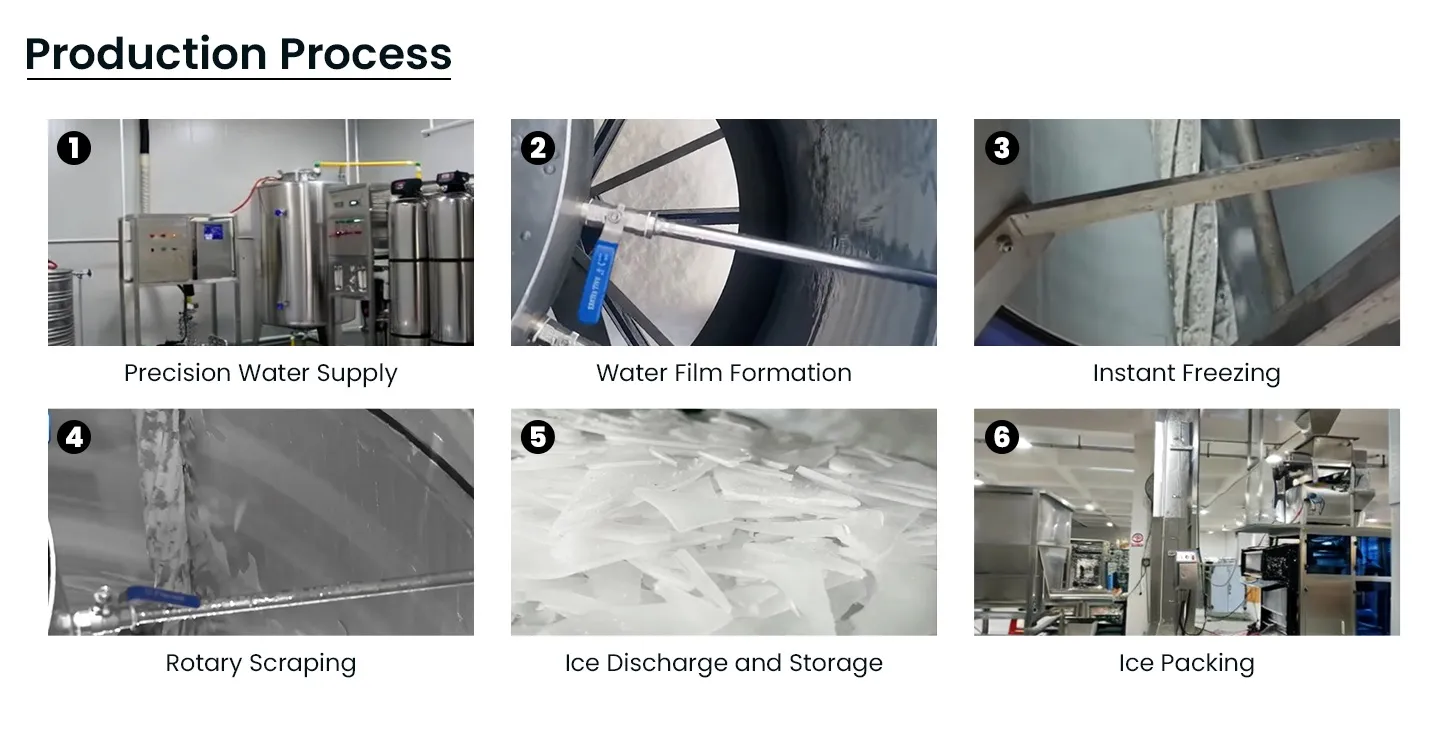

Working Process of Raybo Flake Ice Machine
- Step 1: An external water source (tap water or fresh water) enters the machine through the water inlet port.
- Step 2: The ice-making pump draws water from the water tank and delivers it to the water distribution tray located at the top of the ice-making cylinder (evaporator).
- Step 3: The refrigeration system (compressor, condenser, expansion valve) begins operation. Low-temperature liquid refrigerant flows through the jacketed walls of the evaporator, absorbing heat from the inner surface of the cylinder.
- Step 4: A geared motor drives a spiral ice scraper to rotate slowly along the inner wall of the ice-making cylinder.
- Step 5: Driven by gravity, the scraped ice flakes fall through the ice discharge port into the storage bin located below.
- Step 6: The entire production process is continuously monitored by an intelligent control system (typically a PLC). The system monitors parameters such as water levels, ice fullness status, and system pressure.
One-Stop Flake Ice Making Solutions
Raybo ice flake making machines are shipped to over 50 countries worldwide. We offer complete flake ice production solutions for cold chain transport needs. Our services cover everything from system design to after-sales support. We provide strong customisation options and high product quality. These strengths have earned us full recognition from our customers.
Raybo has years of industry experience. We offer custom system solutions for different applications, like seafood processing and chemical cooling. Raybo provides expert guidance on equipment selection. We ensure the equipment fits the customer’s production process perfectly.
We cover the whole process from needs analysis to testing. Our after-sales team responds quickly to any issues. We supply spare parts and offer regular maintenance services. This ensures long-term and stable operation of the equipment.

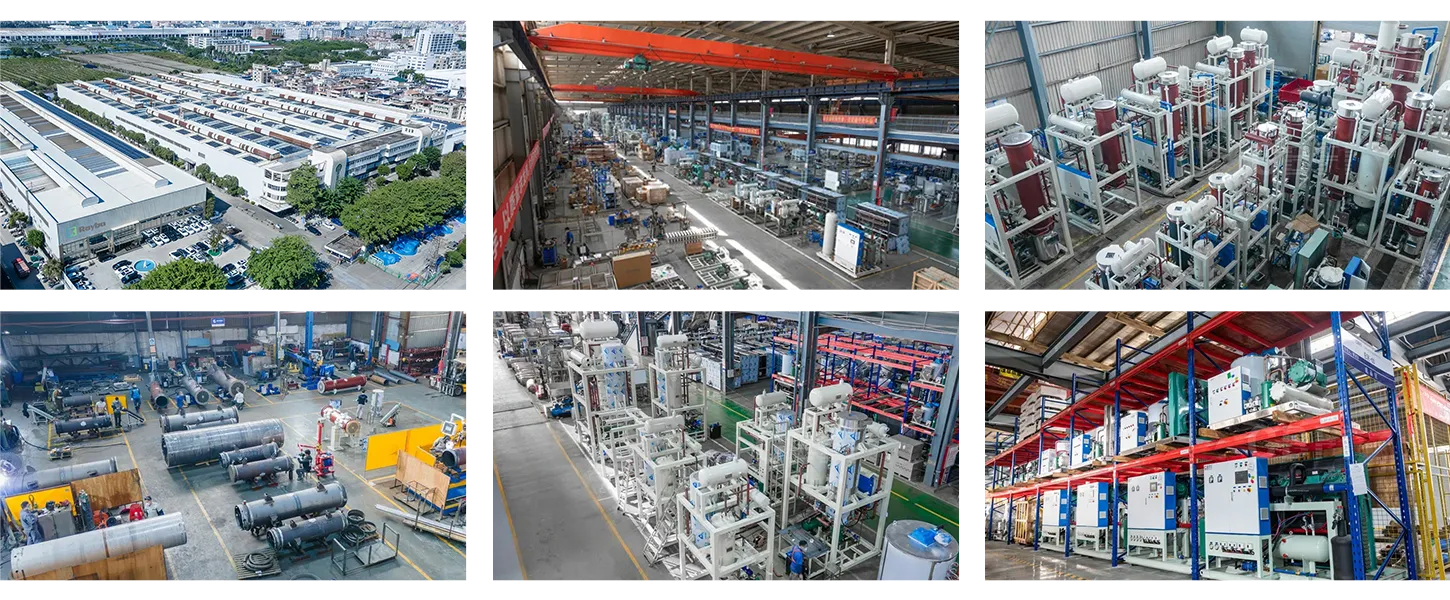

Raybo has a stable production capacity and a strict quality management system. We guarantee on-time delivery and consistent equipment quality. We control every step from material sourcing to factory testing. Our standards ensure high reliability for every unit.
